MH100 Series | Botai Microelectronics Automotive-grade Altitude Sensor BHO125H10A90-6

The MH series ofBotai Microelectronics sensors uses automotive - grade MEMS sensor chips. These altitude sensors, which are designed for chassis control applications, support output in the form of analog signals, pulse - width modulation (PWM) signals, and PSI5 signals. They have been successfully applied in various types of electronically controlled suspension systems, and there are already multiple form - factor series available.

The core of the self - developed sensor is a Hall - type or magnetoresistive (AMR/TMR/GMR) sensing element fabricated through a magnetoelectric process, paired with a dedicated signal conditioning circuit. This combination offers excellent static and dynamic performance.

The BHO125H10A90 - 6 product outputs analog signals and can measure within a range of 2×125°.

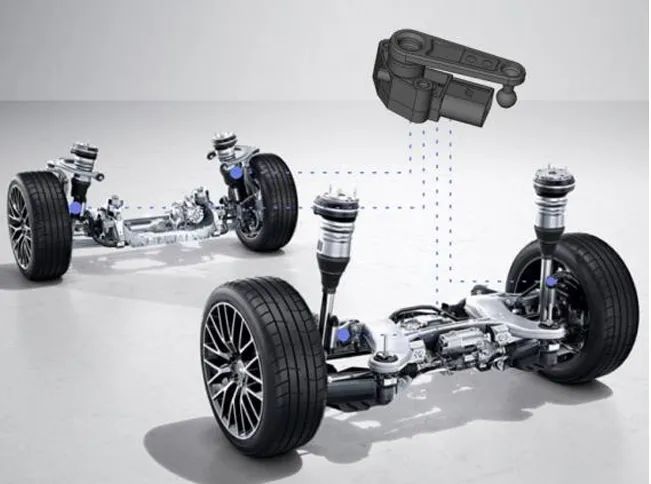

This sensor is primarily used to detect the height of the vehicle's suspension chassis. Each vehicle requires four such sensors. It can also be customized for a 360 - degree measurement range and multi - interval angle measurement, which can be applied to sense the vertical movement angle of the wheels and the vibration amplitude of the vehicle body. Other applications include hill - start assist (tilt measurement) and automatic headlight leveling.

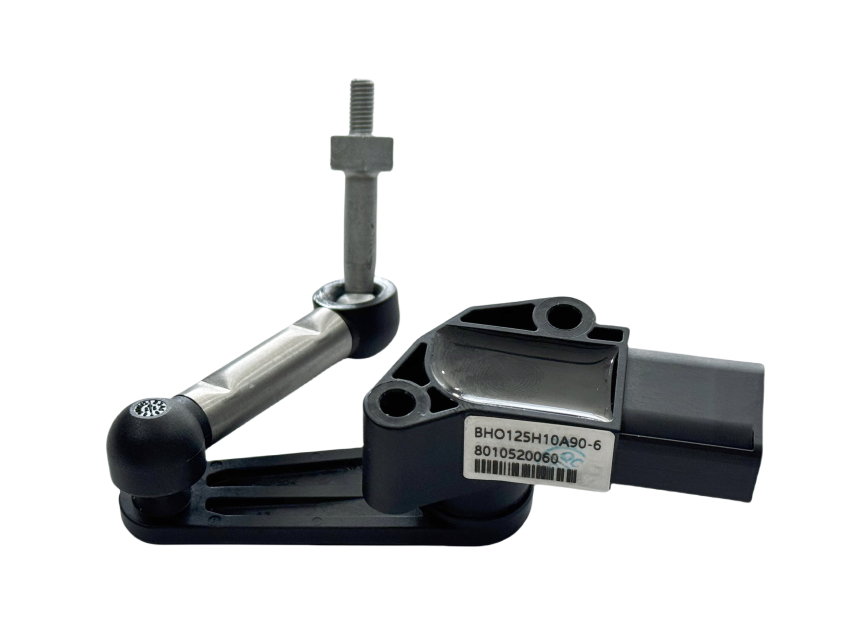

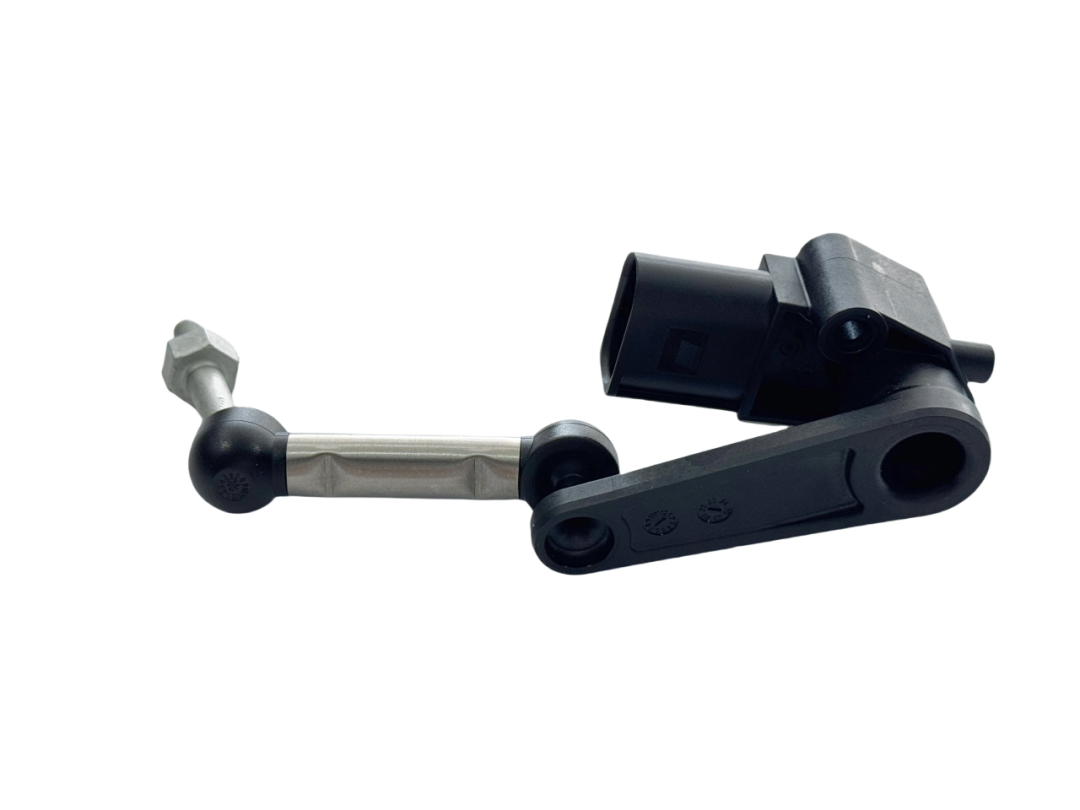

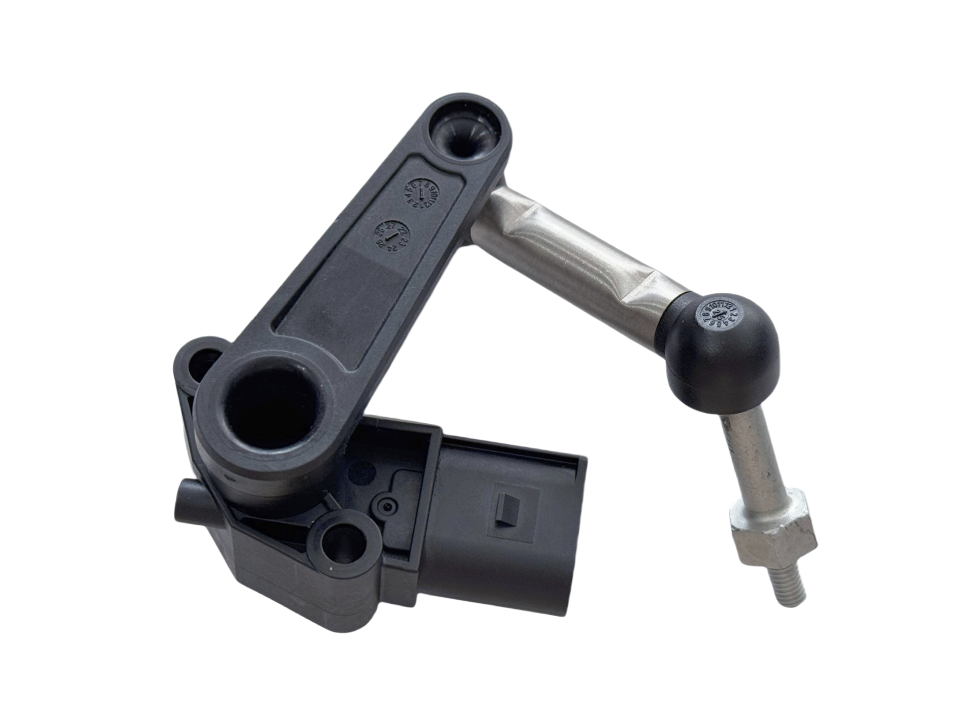

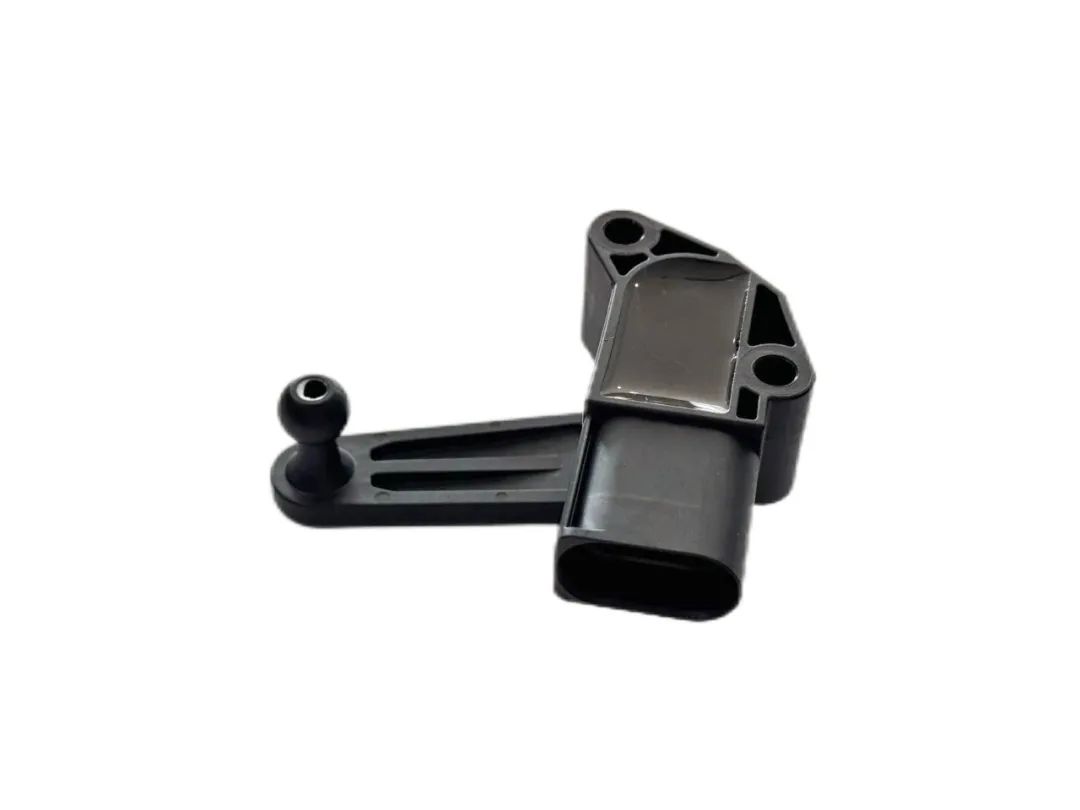

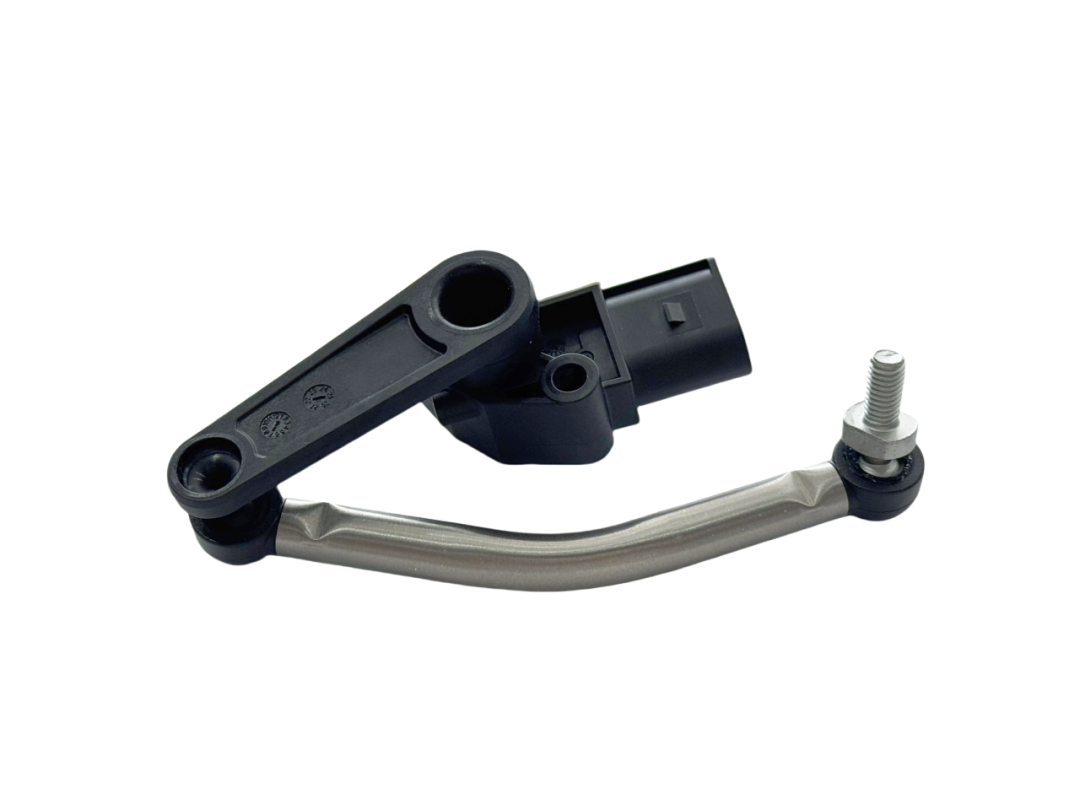

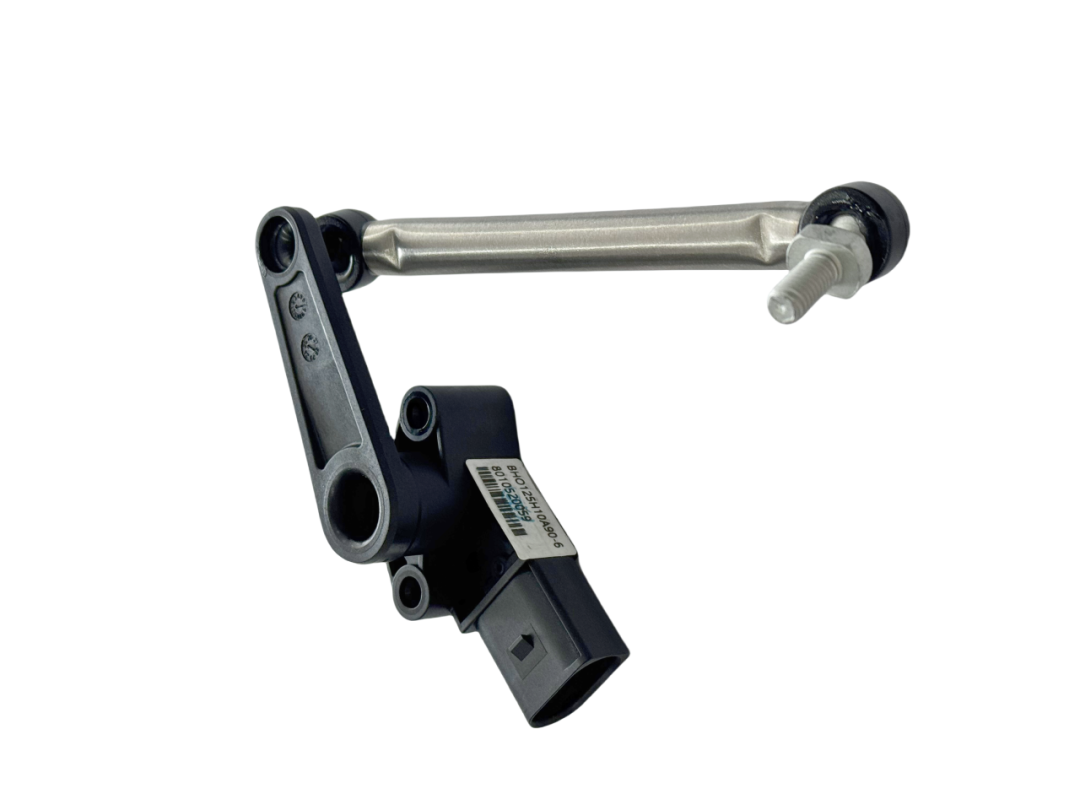

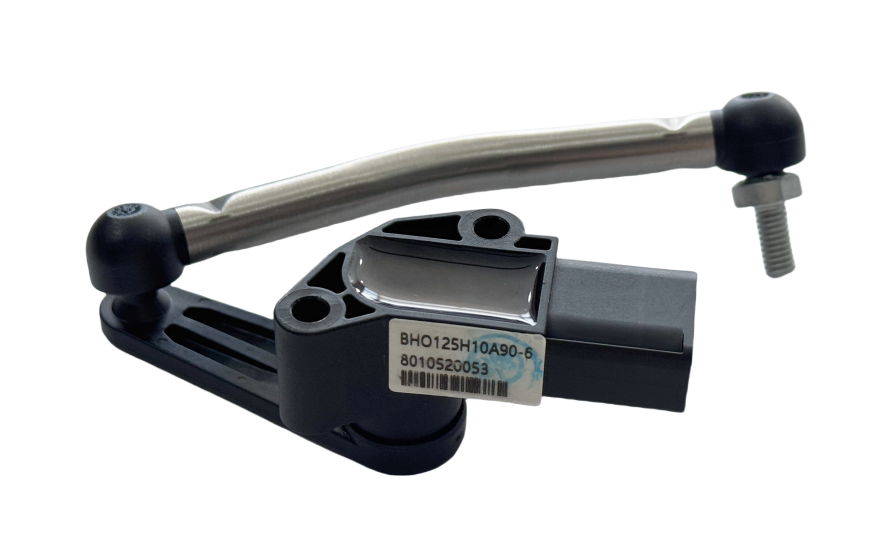

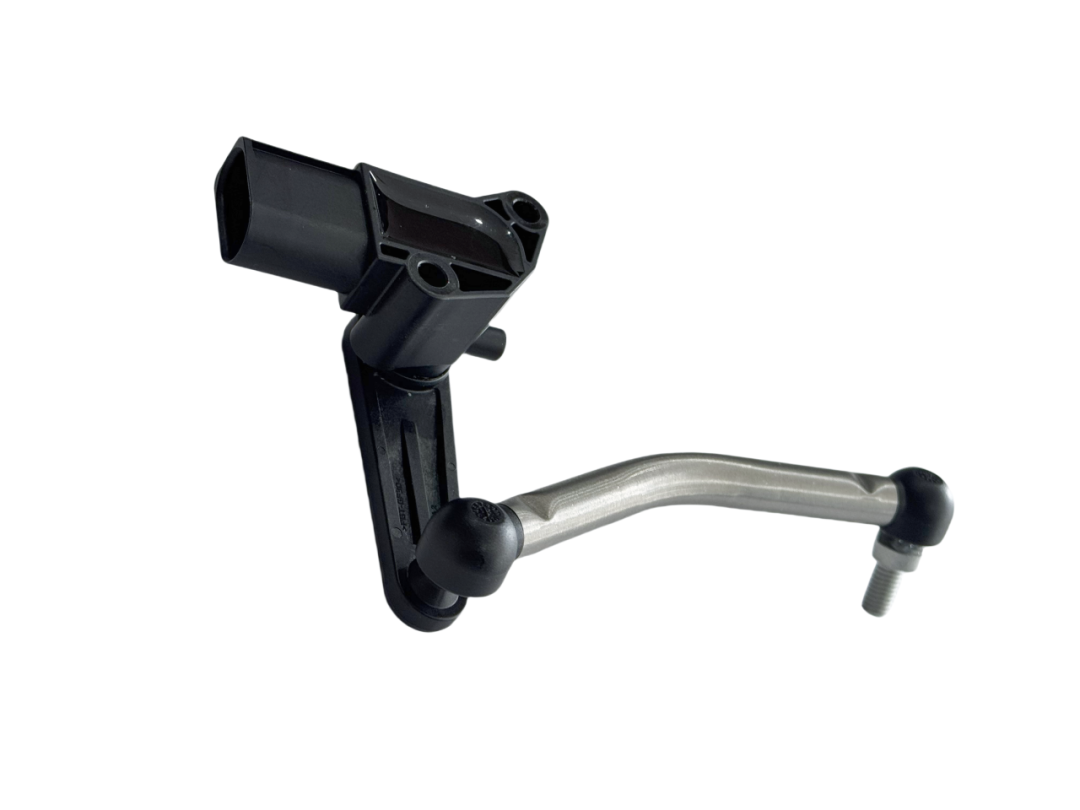

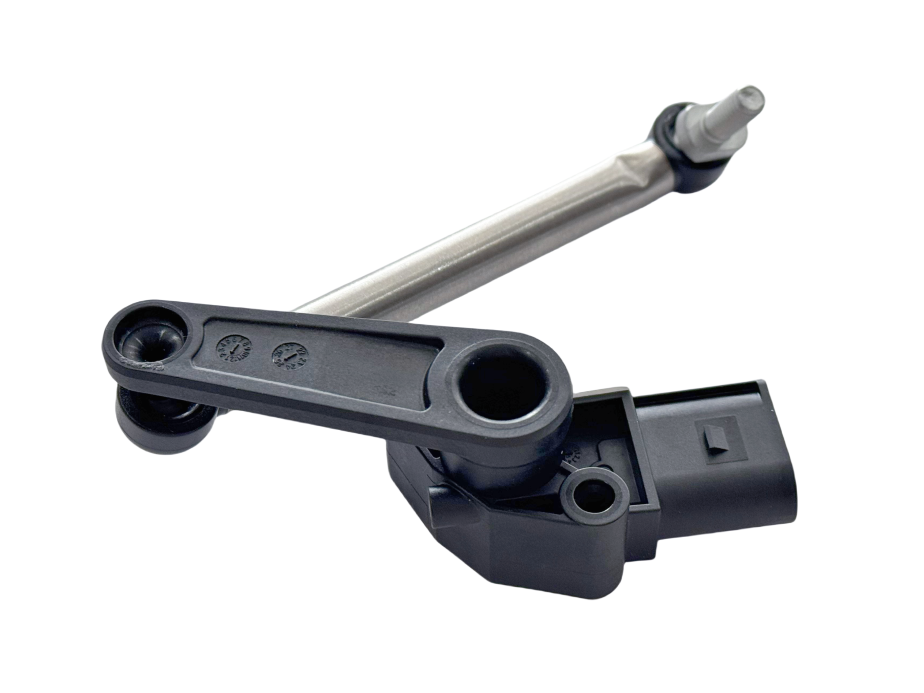

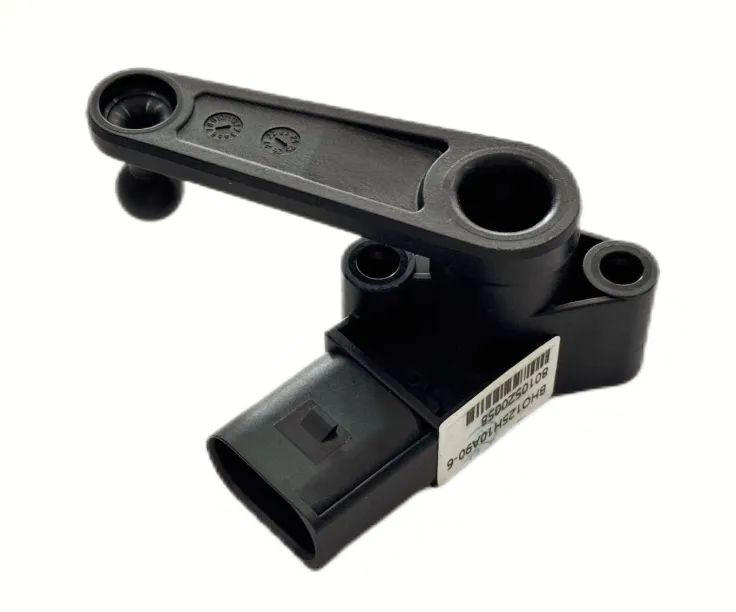

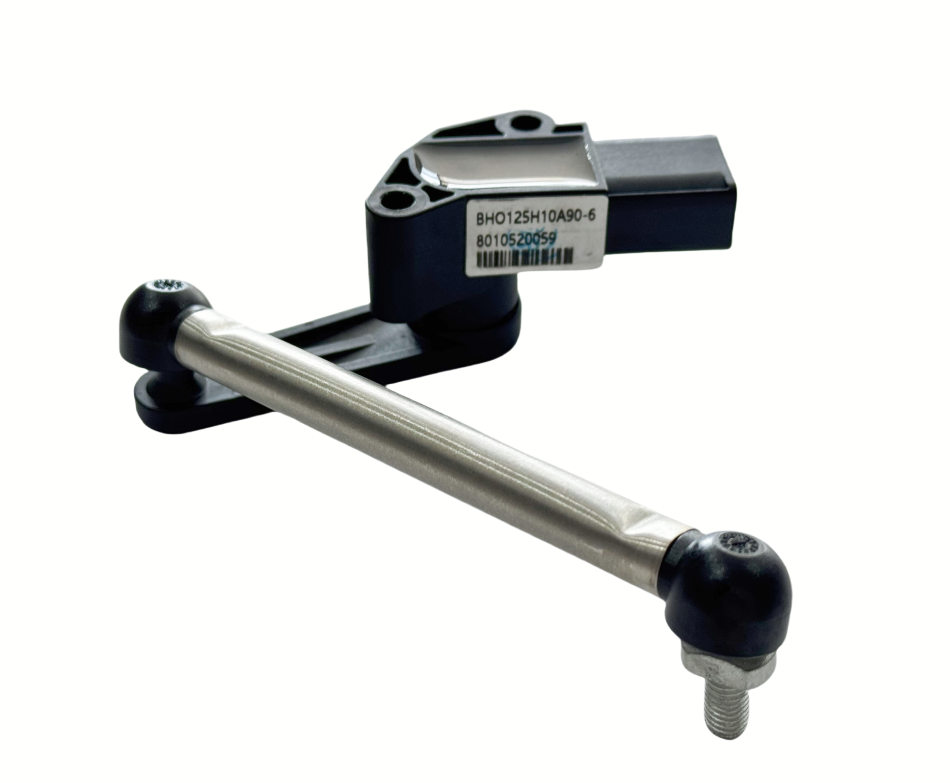

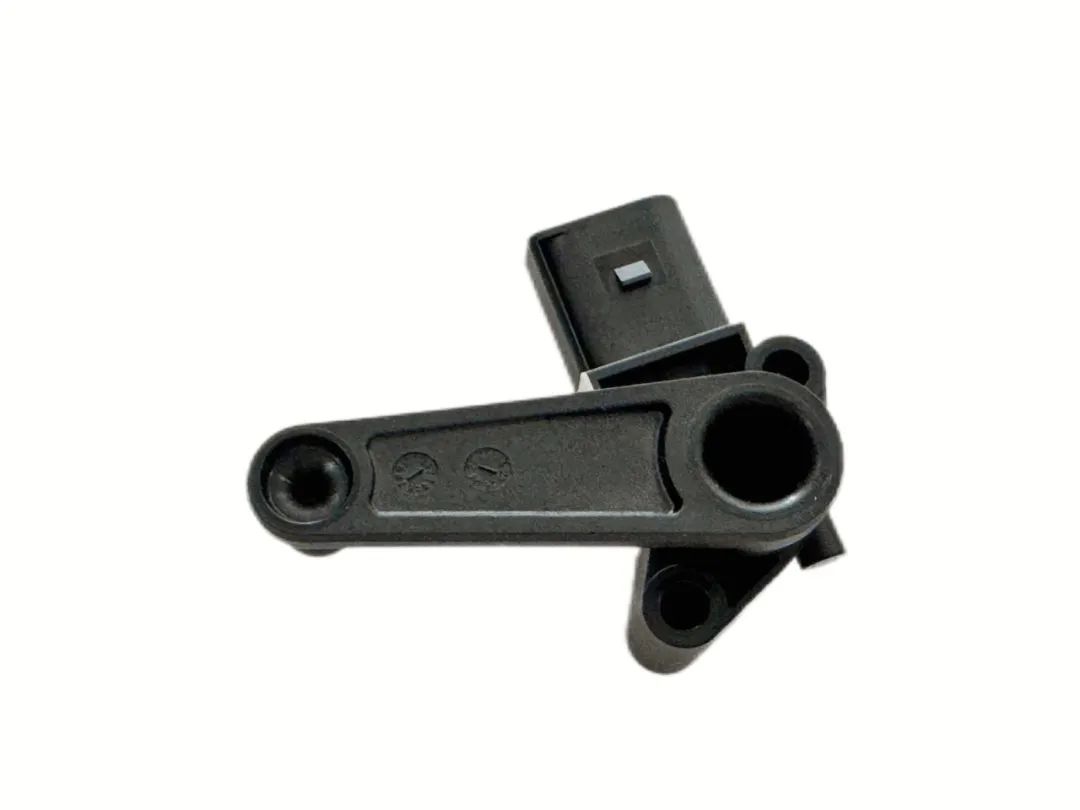

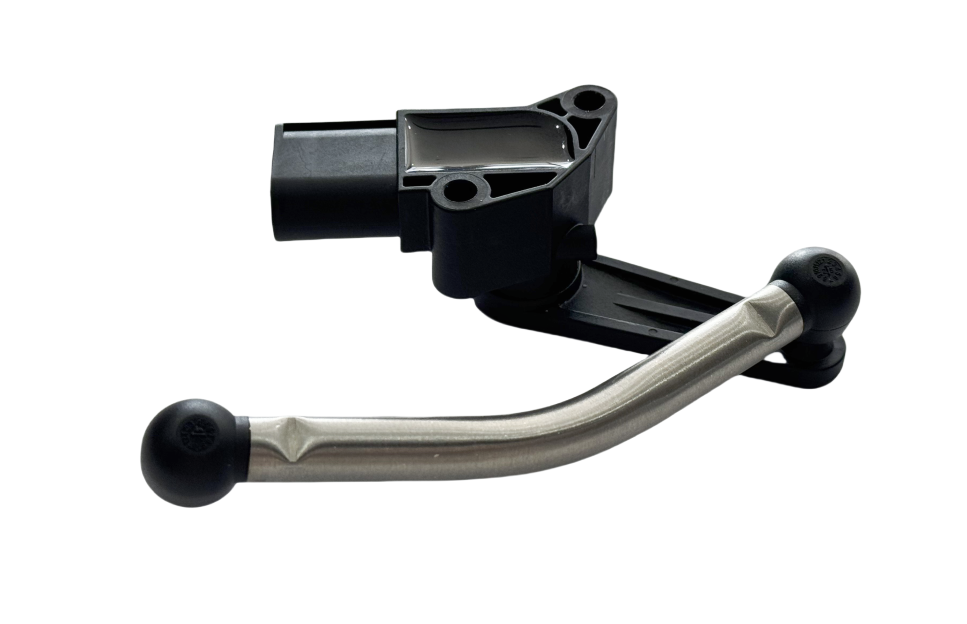

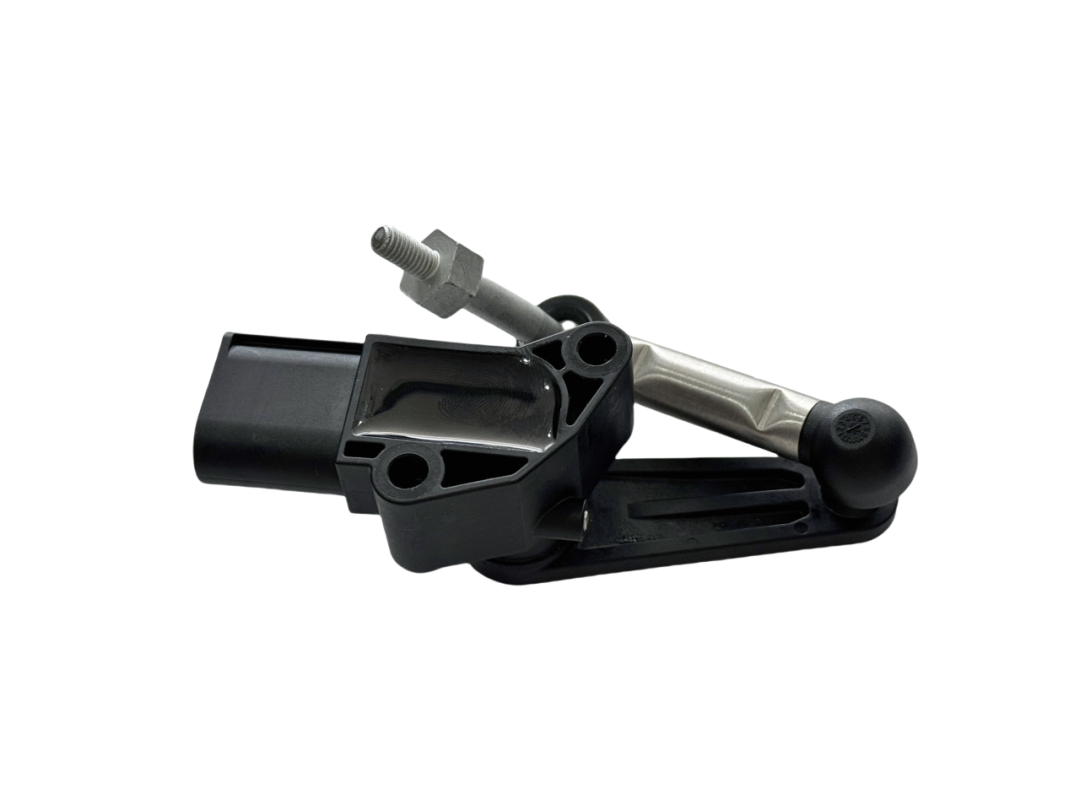

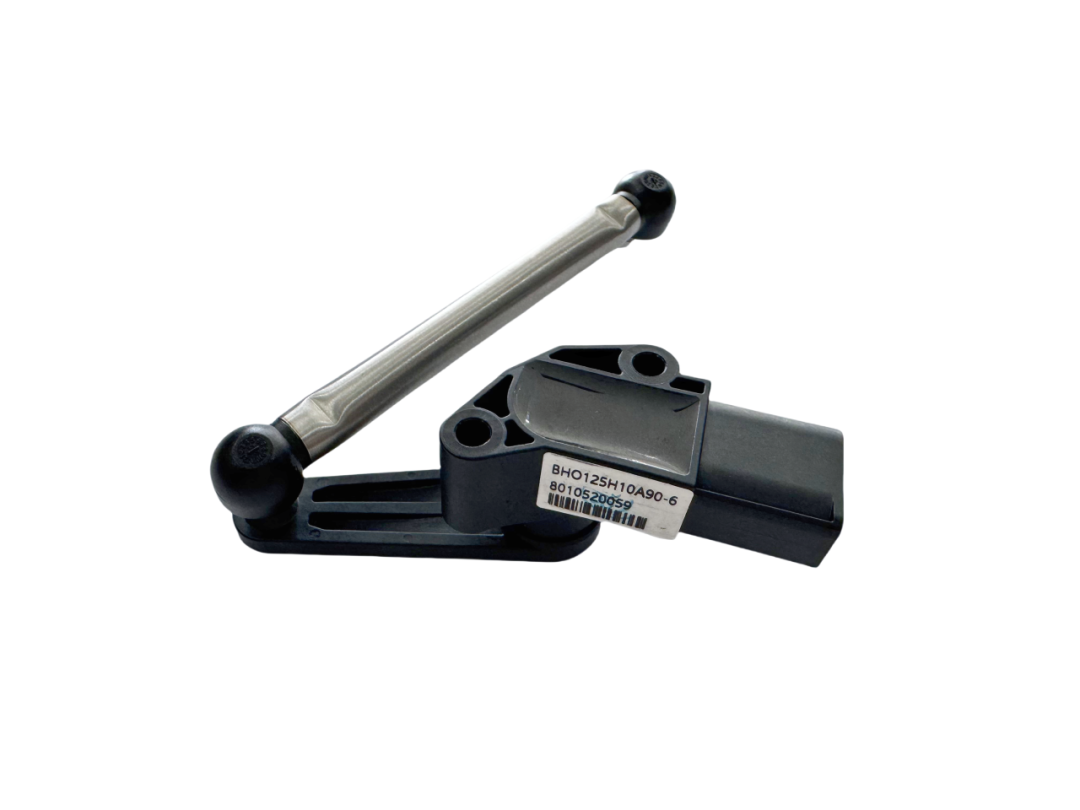

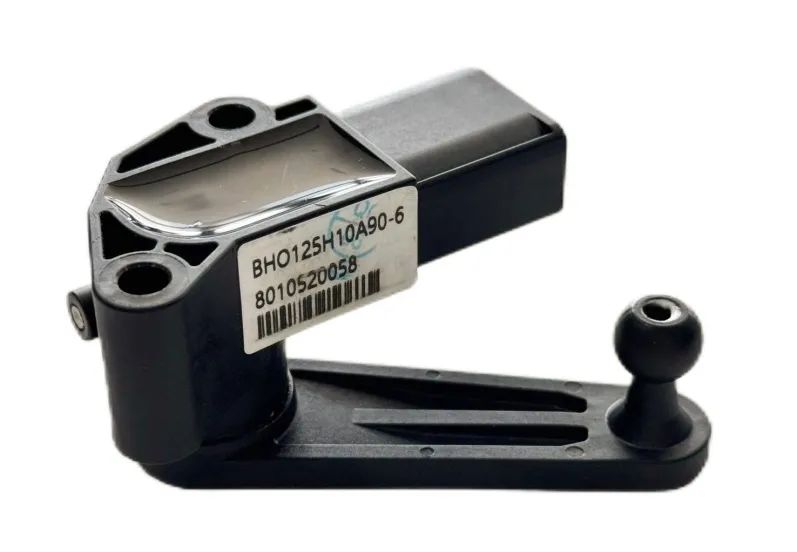

#### Product Images of BHO125H10A90 - 6 Altitude Sensor

TYPE

TYPE

TYPE

Product Technology

- Utilizes the differential horizontal Hall magnetic induction principle and proprietary signal - processing ASIC circuit technology to achieve angle measurement from 0° to 360° (default is 125°, customizable).

- Adopts a non - contact structural design to reduce wear and extend service life.

- Features an integrated self - lubricating universal ball socket design for flexible component matching.

- High sensitivity and strong anti - interference ability (resistant to stray magnetic field interference).

- The product meets the ISO26262 functional safety requirements and has obtained ASIL - B level certification.

- Equipped with overload protection, over - voltage protection, and reverse - polarity protection.

- Operates within a temperature range of - 40°C to + 125°C.

#### Applications

- Active/adaptive suspension systems.

- Measuring the angle between the vertical wheel and the chassis.

- Automatic headlight leveling.

- Tilt measurement.

- Measuring the opening degree of various valves.

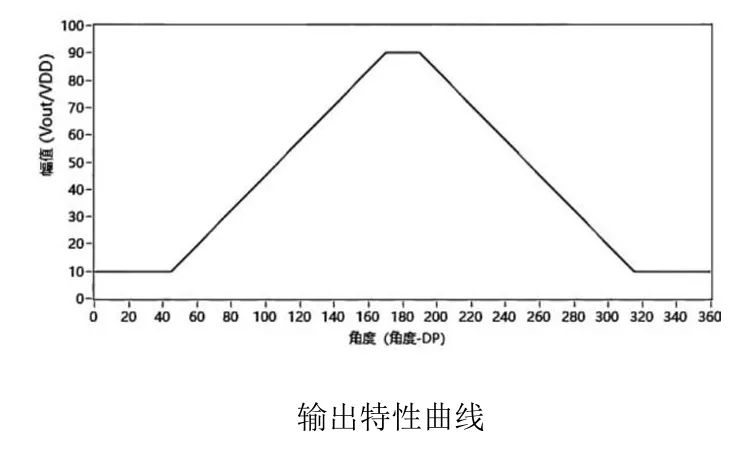

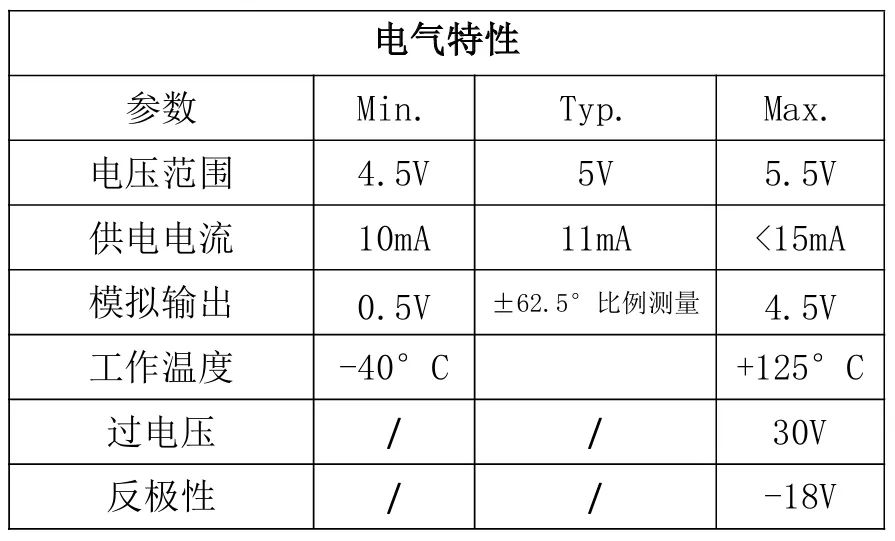

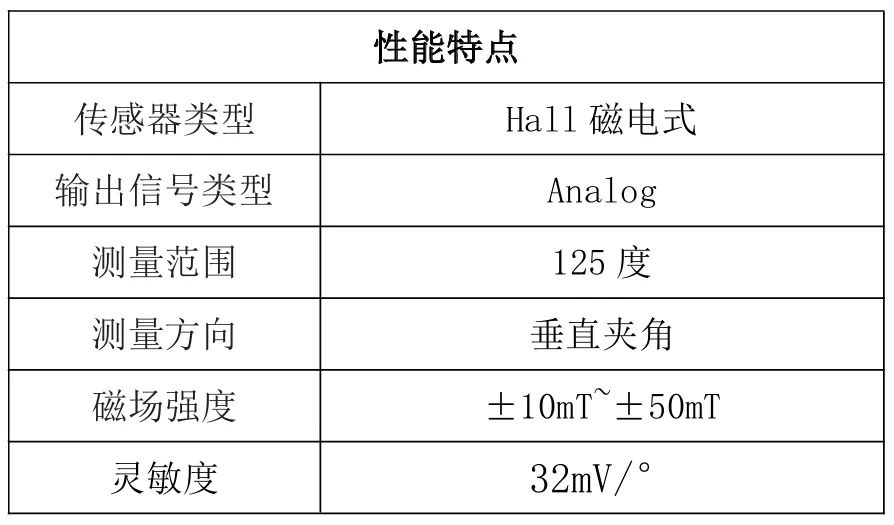

Key Indicators

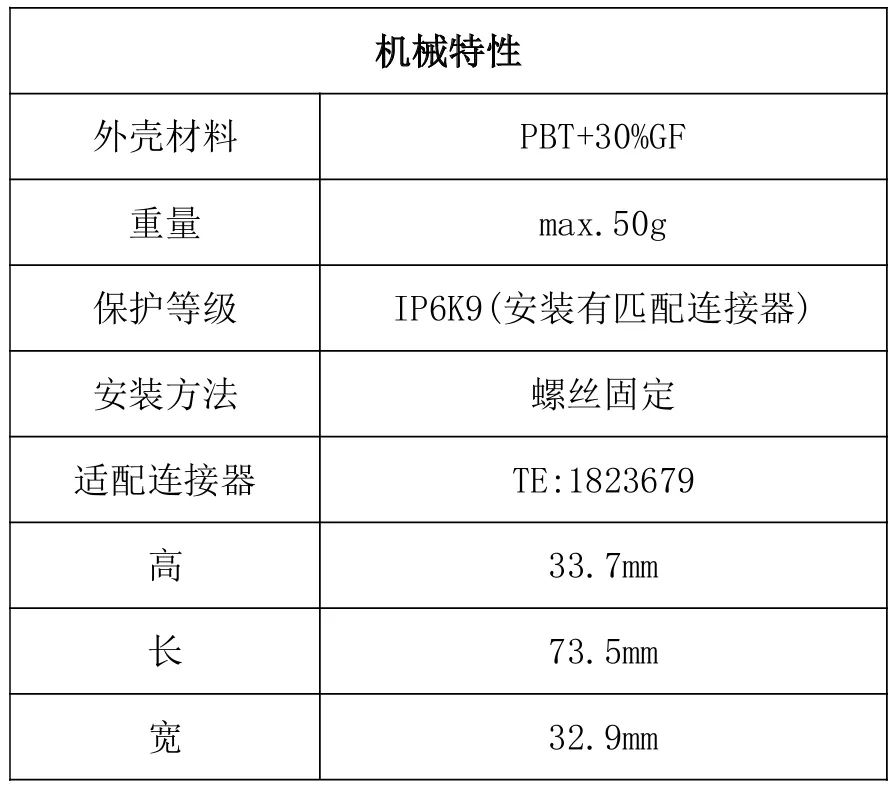

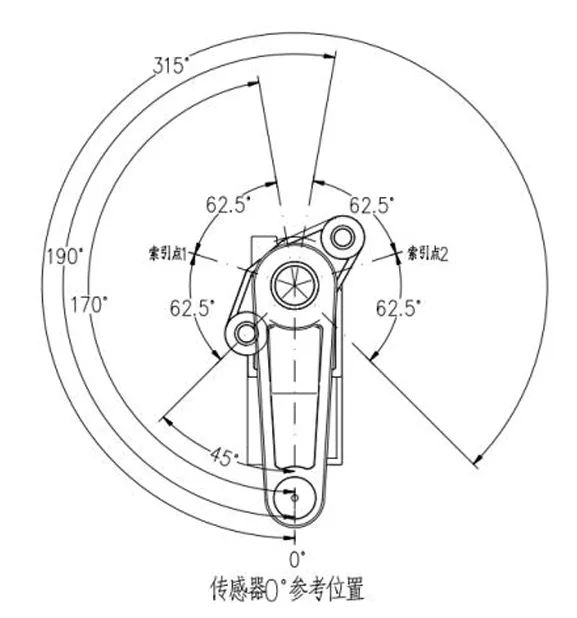

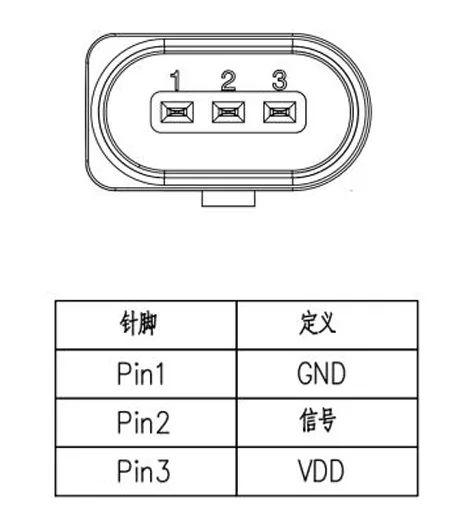

Product Structure
